The new B Series - now with greater load capacity.
Specifications
- now new with bigger axle distance of 2.5m
- up to 13to permitted total weight at 10 km/h on non public roads
- robust HEXAGONAL frame
- low dead weight for small tractors
- KTL primed and powder coated
- extremely strong screwed front grille
- articulated drawbar +/- 40° slewing range
Technical information
-

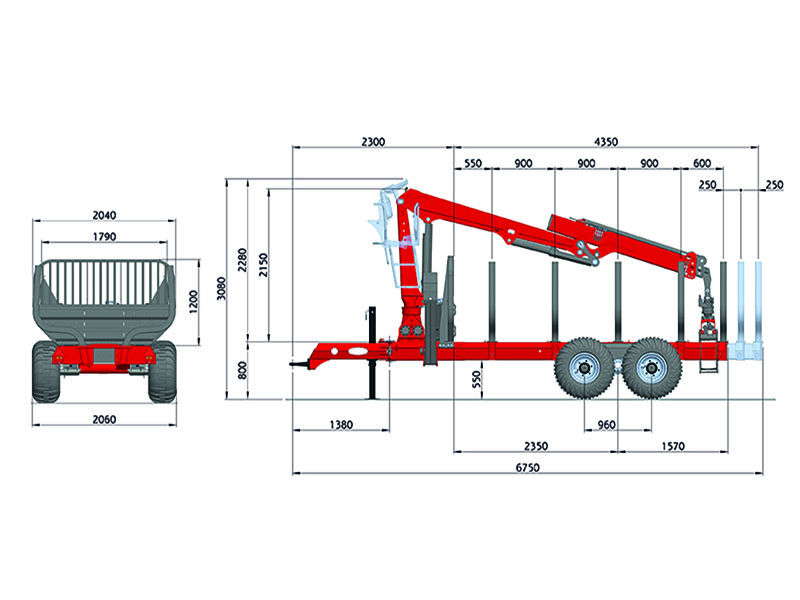

B-Series
The proven medium-sized one!
The C-Series is solid yet not heavy, but for cranes that already have 6.2mto lifting torque.
Specifications
- up to 15to permitted total weight at 10km/h on non public roads
- for L-cranes with up to 11.0m and Z-cranes with up to 9.0m reacht
- HEXAGONAL base frame
- mechanical extension +700mm as standard
- protected flap-down stabilisation
- continuous bogie axle
- adjustable support leg
- with hydraulic or compressed-air brake system
- KTL primed and powder coated
- articulated drawbar with slewing range of +/- 40°
Technical information
-

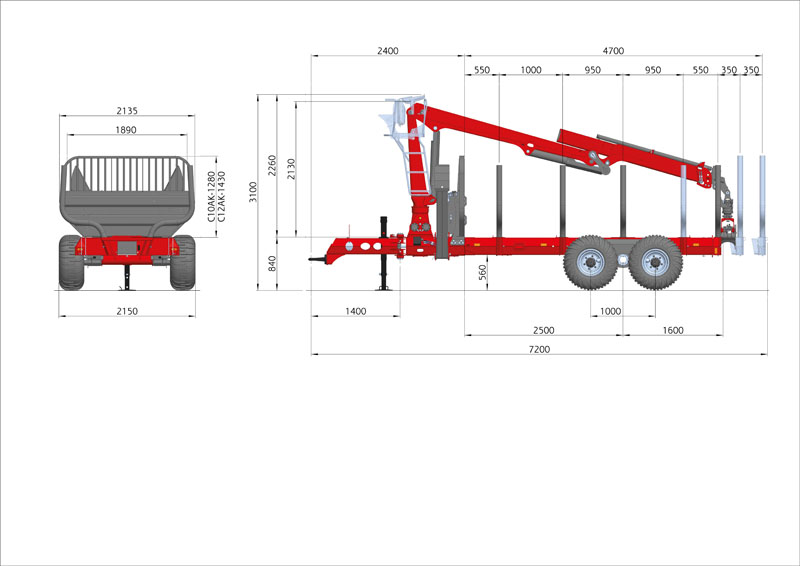

C-Series
The big one for the most powerful cranes.
Specifications
- up to 19to permitted total weight at 10km/h on non public roads
- HEXAGONAL base frame
- mechanical extension +700mm as standard
- optionally available with branch skip or round bale attachment
- with hydraulic or compressed-air brake system
- KTL primed and powder coated
- articulated drawbar with slewing range of +/- 40°
Technical information
-
M-Series
The V version for long timber.
The right centre of gravity thanks to hydraulic axle repositioning.
Specifications
- up to 19to permitted total weight at 10km/h on non public roads
- 520mm hydraulical repositioning of the axle
- 900mm mechanical extension
- double stake holder above the axle
- up to 6 stake bunks possible
- also suitable for loads 2 x 3m
Technical information
-

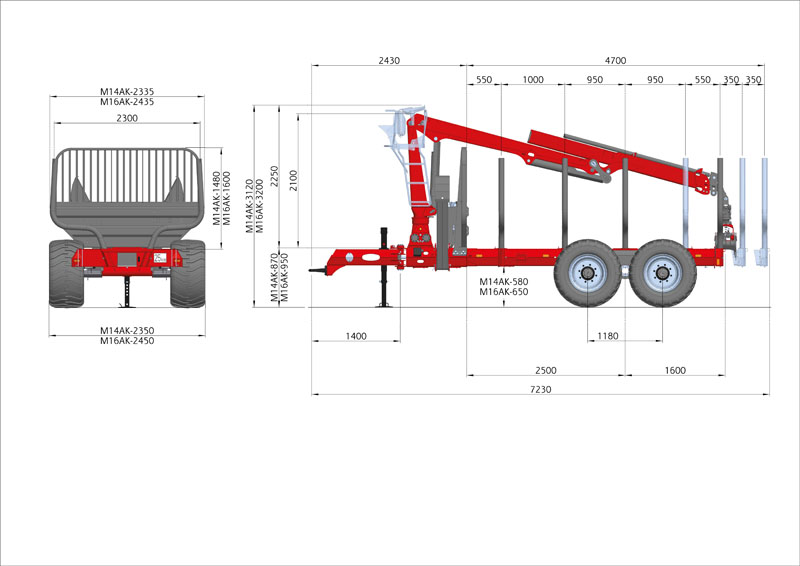

measurements V-version
